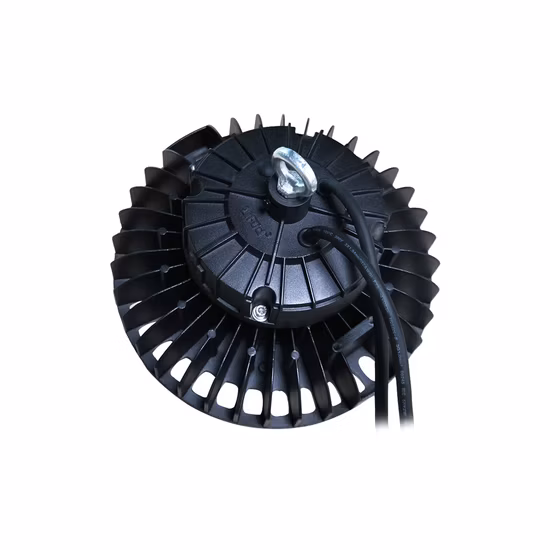

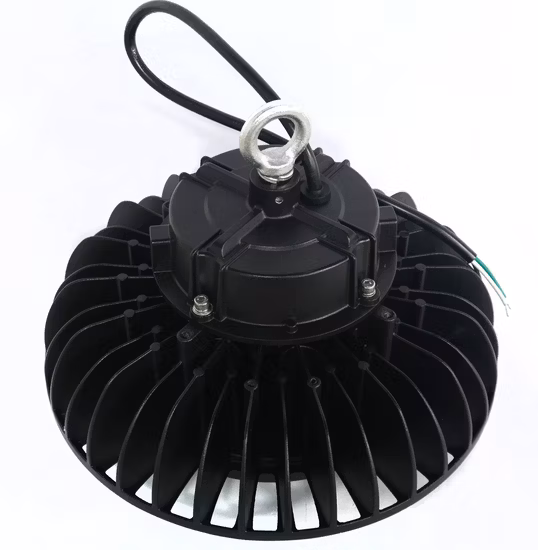

50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light

50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light

Technical Specifications LED type: SMD3030/5050/2835, LM80 TM21 certified, Up to170lm/W Power: 100W, 150W, 200W.240W PF>
Basic Info.
Model NO. ATA-UF200WHB
Certification CE, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA
Beam Angle 120°
LED Chips Nichia
Material Die-Cast Aluminum, Scratch and Fade Resistant
Cover Type PC Lens Cover or Tempered Glass Cover
Function 1-10V Dimmable, Daylight Sensor, Motion Sensor
Body Colour Black/White
Certifications SAA, PSE, UL, cUL, Dlc, TUV, GS, CB, FCC, CE, RoHS
Warranty Meanwell Driver 5 Years, UL CE Driver 3 Years
Installation Methods Suspending Ring, Suspending Chain, Supporting Rod
Driver Shape Round Driver or Rectangle Driver Bracket
Shape UFO/Round
Product Type UL cUL Dlc LED Industrial Lighting
IP Grade IP65/IP67/IP68
PF >0.95
LED Driver Meanwell Hbg Series
LED Chip SMD 3030

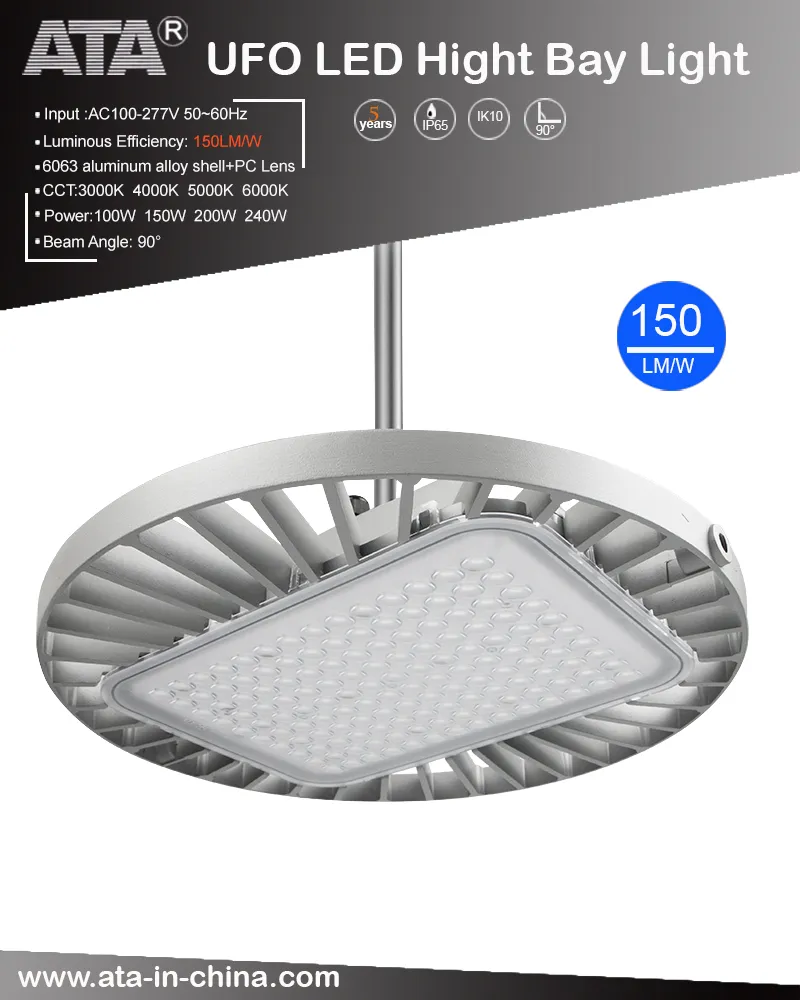

Product Name UFO LED High Bay Light
Transport Package Pearl Foam Inner Box and K=K Carton
Specification D290*H170, D340*H180, D400*H194MM
Trademark ATA
Origin Made in China
HS Code 9405409000
Production Capacity 300000piece/Pieces /Month
Product Description
Technical Specifications
LED type: SMD3030/5050/2835, LM80 TM21 certified, Up to170lm/W
Power: 100W, 150W, 200W.240W
PF>0.95 THD<15, No-flicker
CRI> 80
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 120°
Dimmable: 0-10V dimmable
Surface color: Black
IP Rating: IP65
Life-span: 50, 000 hours
Product Description
Simple and elegant appearance, anodized housing, durable
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly
All stainless screws prevent bad situation
One-piece PC lens imported from Japan light transmittance>95%
High-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances
Certification: UL, cUL, DLC, ETL,TUV, GS, CB, SAA, FCC, CE, RoHS
Warranty: 5 years
Power100W150W200W240W
Power consumption100W±5W150W±5W200W±5W240W±5W
Input VoltageAC100-277VAC100-277VAC100-277VAC100-277V
Power Frequency50-60Hz50-60Hz50-60Hz50-60Hz
Output VoltageDC28.8-48VDC28.8-48VDC28.8-48VDC28.8-48V
Output Current2A(Constant Currrent)3.3A(Constant Currrent)4.8A(Constant Currrent)5.0A(Constant Currrent)
Luminous Flux15000LM(CCT=5000K)22500LM(CCT=5000K)36000LM(CCT=5000K)27000LM(CCT=5000K)
LED TypeSMD2835
PowerSupplyLifud/Sosen
System Efficacy140-170LM/W (CCT=5000K)
CCT4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle60 /90/120
CRI>80Ra
System Efficiency>90%
LED Junction Temperature<75ºC(Ta=30ºC)
Storage Temperature(-40~+70ºC)
Operating Temperature(-30~+50ºC)
Working Environment15-90%RH
Power Efficiency>93%
Power Factor>0.93
Total Harmonic Distortion<15%
Luminaire Net Weight3.2kg4.2kg5.5kg6.5kg
Dimensiones Size¢260*135MM¢260*135MM¢290*157MM¢290*157MM
CertificatesUL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span>50000Hrs(Ta=30ºC @L70)
Ingress ProtectionIP65
Quality Warranty5years
InstallationSuspending Ring, Suspending Chain, Supporting Rod, Hook, Bracket Mounting

50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light


50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light


Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light


50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light


Applications
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.

50W/80W/100W/120W/150W/200W/240W/300W UL Class I, Division II Iecex Atex LED Explosion Proof Highbay Light



User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
